BATTERY
POWERED LIFT MAGNETS
|
|
For
flat and round material handling |
|
|
|
|
|
|
BUX
F SERIES BATTERY POWERED LIFT MAGNETS |
For
Flat Material Handling |
|
|
|
|
|
|
|
|
|
BUXF03000 |
|
BUXF05500 |
|
|
Rated
Lift Capacity
0-3,000 lbs. |
|
Rated
Lift Capacity
0-5,500 lbs. |
|
|
|
|
|
|
|
|
|
|
BUXF08000 |
|
BUXF11000 |
|
|
Rated
Lift Capacity
0-8,000 lbs. |
|
Rated
Lift Capacity
0-11,000 lbs. |
|
|
|
|
Local
& cordless remote controlled battery powered lift magnets are designed
for flat material handling. These
Battery Powered Lifting Magnets are compact, mobile, self-contained battery
powered units. Operating on their
own power sources, they are free of restricting cords and wires and have
the further advantage of being usable in
areas where electric power is not available. The BUXF03000, BUXF05500 and
BUXF08000 are all single units.
The BUXF11000 is two magnets on an adjustable spreader beam operated from
a single battery pack. |
|
|
|
|
|
Standard
Features: |
|
|
|

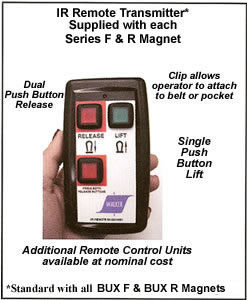

Pocket for IR Remote Transmitter* |
|
|
|
Removable cover allows inspection
of battery. |
|
|
|
Temperature compensated: built-in
automatic cut-off charger prevents
over-charging of battery. |
|
|
|
For safety, magnet can not be turned
"ON" if battery charge is too low. |
|
|
|
Interlock prevents magnet de-
energization when suspended in air. |
|
|
|
Audible Warning Alarm and flashing
light indicate low battery |
|
|
|
Lighted display indicates battery charge
level. |
|
|
|
|
|
110V AC cord and plug for built-in battery charger |
|
|
|
|
|
Uses "Deep Discharge" type low maintenance Gel Cell Battery. |
|
|
|
|
|
Meets all the requirements of ANSI/ASME B30.20 (safety standard). |
|
|
|
|
|
Supplied with manual, pull test certificate, video, and safety poster. |
|
|
|
|
Recommended
Applications |
|
These
versatile Walker magnets have widespread application for handling
of plates, die blocks, machined components, smooth castings, and forgings.
These battery powered magnets are extremely useful throughout the plant,
around the yard, receiving and shipping areas, storeroom, cut-off saws,
burning and welding tables, and machine tools such as grinders, millers,
shapers, drill presses, etc. |
|
Batteries
not included. |
|
Rated
Lift Capacity |
|
The
maximum rated lift is based upon lifting clean, smooth, flat, low-carbon
steel plate, 2" or thicker with the full area of the magnet's lifting
surface in
contact with the load. Derating is required for plates with rust or scale,
plates
thinner than 2", and alloy steels. More detailed ratings are contained
in the
OPERATOR'S MANUAL AND SAFETY INSTRUCTIONS. |
|
|
|
|
|
Order
Online, by Phone or by E-Mail |
|
|
|
~ Add
items to your online shopping cart ~
Click the Model No. of the item you wish
to purchase. |
|
|
|
|
|
|
PRICING
FOR BUXF SERIES MAGNETS |
|
Model No. |
Length |
Width |
Height to
crane hook |
Net wt.
(lbs) |
Shipt wt.
(lbs) |
Flat stock
(lbs) |
Price |
|
21" |
9.6" |
22" |
191 |
200 |
0
- 3,000 |
$8,485 |
|
21" |
9.6" |
23" |
260 |
290 |
0
- 5,500 |
$9,142 |
|
48" |
9.6" |
23" |
565 |
580 |
0
- 8,000 |
$13,582 |
|
60" |
12" |
23" |
645 |
700 |
0
- 11,000 |
$14,438 |
|
|
|
|
|
|
ACCESSORY |
|
I.R.Transmitter...................................................................................................................................... |
$426.00 |
|
|
|
|
|
16-1035 |
Battery for BUXF03000
& WBM13 (battery size 8.84H x 5.31W x 8.99L) |
$498.00 |
|
|
Battery
for BUXF05500, F08000, F11000, R01665, R03330 & WBM13, 26
(battery size 9.51H x 6.87W x 12.08L) |
|
|
|
$900.00 |
|
16-1037 |
|
|
|
|
|
|
|
|
BUX
R SERIES BATTERY POWERED LIFT MAGNETS |
WITH
PUSH BUTTONS AND I/R REMOTE for Flat, Round and Shaped Material Handling |
|
|
|
|
|
|
|
|
|
BUXR01665 |
|
BUXR03330 |
|
|
Rated
Lift Capacity
Round 0-1,665 lbs. |
|
Rated
Lift Capacity
Round 0-3,330 lbs. |
|
|
|
|
|
|
|
Performance
Rating ANSI 1020 Steel |
|
|
|
|
The
special feature of these Battery Powered Lifting Magnets is its unique pole
shoe design, which enables it to
handle a wide variety of structural shapes and rounds. |
|
|
|
|
Powered
by its own battery, it is free of restricting cords and wires, and can also
operate in areas where electric
power is not readily accessible. |
|
|
|
|
Recommended
Applications |
|
|
This
unique magnet is ideally suited for handling pipe, tubing, bar stock, billets,
I beams, H beams, angles, channels, Tees, Zees, and pilings. Although specially
designed to handle structural shapes and rounds, the Bi-Polar configuration
also
lifts plate, forgings, and castings. |
|
|
|
|
Batteries
not included. |
|
|
|
Standard
Features and Benefits |
|
Pocket for IR Remote Transmitter*
Removable cover allows inspection of
battery.
Temperature compensated: built-in automatic
cut-off charger prevents
over-charging of battery.
For safety, magnet can not be turned
ON if battery charge is too low.
Interlock prevents magnet de-energisation
when suspended in air.
Audible Warning Alarm and flashing light
indicate low battery
Lighted display indicates battery charge
level.
110V AC cord and plug for built-in battery
charger
Uses Deep Discharge type
low maintenance Gel Cell Battery
(not included).
Meets all the requirements of ANSI/ASME
B30.20 (safety standard).
Supplied with manual, pull test certificate,
video, and safety poster. |
|
|
|
|
|
|
|
Order
Online, by Phone or by E-Mail |
|
|
|
~ Add
items to your online shopping cart ~
Click the Model No. of the item you wish
to purchase. |
|
|
|
PRICING
FOR BUXR01665 & BUXR03330 |
Model No. |
Length |
Width |
Height to
crane hook |
Net wt.
(lbs) |
Shipt wt.
(lbs) |
Flat stock
(lbs) |
Price |
|
20.5" |
9.5" |
28" |
350 |
410 |
0
- 1,665 |
$12,939 |
|
30" |
10.5" |
30" |
739 |
775 |
0
- 3,330 |
$22,282 |
|
|
ACCESSORY |
|
|
|
I.R.Transmitter...................................................................................................................................... |
$426.00 |
|
|
|
16-1035 |
Battery for BUXF03000
& WBM13 (battery size 8.84H x 5.31W x 8.99L) |
$498.00 |
16-1037 |
Battery
for BUXF05500, F08000, F11000, R01665, R03330 & WBM13, 26
(battery size 9.51H x 6.87W x 12.08L) |
$900.00 |
|
|
|
